Status Bar

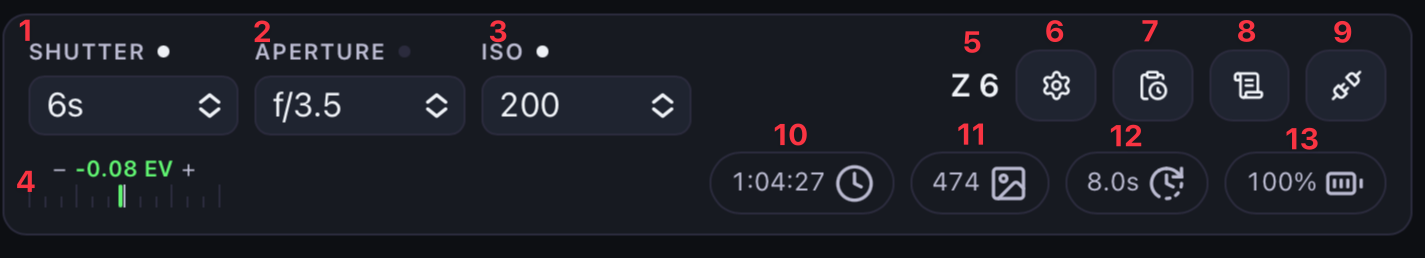

The following page describes all the elements of the status bar. It refers to the numbers in the diagram below.

interface

Parameters​

Under items 1–3, you can view the current camera settings (shutter speed, ISO, and aperture) and change them using the drop-down menu.

The small dot next to each setting label indicates whether ramping is enabled for that setting. This indicator is ...

  • gray when ramping is disabled for that parameter.
  • white when ramping is enabled for that parameter.
  • blue when that parameter is currently being ramped.

Exposure Meter​

The exposure meter (4) displays the exposure relative to the set luminance reference value.

Additional Options​

The following additional settings can be found under points 5-9:

  • The name of the connected camera (5)
  • Settings menu with additional options (6)
  • Timelapse Interval Calculator (7)
  • Log view, where communication with the camera is logged (8)
  • Disconnect the current connection (9)

Status Informations​

  • Elapsed time since the first frame (10)
  • Number of frames captured (11)
  • Estimated duration of the time-lapse sequence (12)
  • Camera battery level (13)
